The Karlsruhe Institute of Technology, as part of its Science Year 2014 — The Digital Society program, has developed algorithms through mathematics and theoretical computer science that can help represent information on navigation systems more optimally and make it easier to read without all the clutter the maps sometimes contain.
Due to the success of navigation devices and smartphones, digital maps are used widely in everyday life. They guide us safely along motorways or to the next bakery as long as the map is good and clear. However, representation of many information items on small, mobile screens is not trivial. At the KIT, computer scientists have now developed a method to ensure mathematically optimal adaptation of the labeling to the perspective and driving direction.

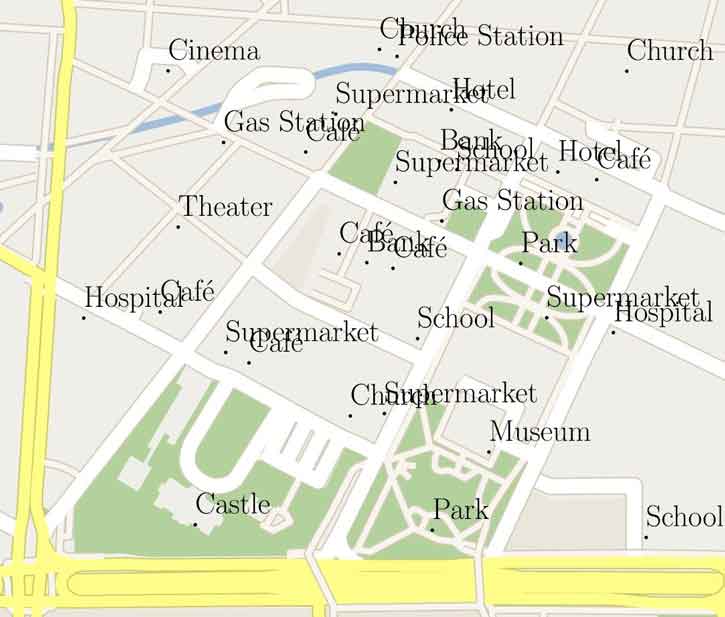

“Digital maps are often superior to paper maps,” Martin Nöllenburg, KIT, explains. “Digital maps can be rotated or zoomed. Places of interest can be added by a thematic selection from databases.” The challenge, however, consists in keeping the representation and labeling clear, no matter how the user adjusts the visible range and how the route continues. “When the labelings overlap, jump, or flicker, the added value is lost and a driver distracted by irritating representations may be a danger in road traffic.”
At the KIT, Nöllenburg heads a group of young researchers, which focuses on mathematically exact geovisualization, i.e. the representation of information in maps. This research area is of interest not only for mathematicians and theoretical computer scientists. This is reflected by the fact that Nöllenburg was granted a research award by the Google Internet and Maps Service. “In the end, usable algorithms can only be programmed, if the problem is understood mathematically,” Nöllenburg says.
By means of the mathematical description of digital maps, the difficulty of the problem can be estimated first. For example, maximization of the number of labelings in the selected image section of the navigation device along a route is one of the mathematical problems, the so-called NP-complete problems, that require most of the computing time. “When increasing the number of objects in the map, the required computing capacity grows exponentially,” Nöllenburg emphasizes. “And computing capacity quickly reaches its limits, especially on mobile devices.”
Together with his team, Nöllenburg develops algorithms of higher performance due to a reasonable limitation of the general problem. “Instead of trying to maximize the number of displayed labelings, a good compromise of legibility, computing time, and information depth is reached by keeping the number of labelings in the given section constant,” Benjamin Niedermann explains. He developed the mathematical proofs. “In any case, man cannot sensibly perceive more than three to seven objects.” On this basis, it is not only possible to find a simple method for the sensible labeling of a map. It can also be shown that the computing time of the new method rises moderately only when the object number is increased. “Interestingly, limitation of optimization on a section of the map causes the sum of labelings to increase along the complete route. Hence, more places of interests are mentioned along a way.”
“The more mobile end devices are used in everyday life, the better should be the mathematical basis,” Nöllenburg says. “This is the only way to develop products that really support us in everyday life and do not require more time and effort for operation.” Now, Nöllenburg and his team want to proceed from fundamental research to application and convert the mathematical methods into implementable algorithms. “I am sure that our methods will prove their value in practice.”
Paper reference: Andreas Gemsa, Benjamin Niedermann, and Martin Nöllenburg. Trajectory-based dynamic map labeling. In: International Symposium on Algorithms and Computation (ISAAC’13), pp 413–423. Springer-Verlag, LNCS 8283, December 2013.
